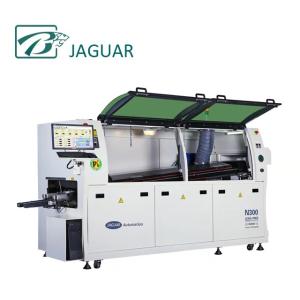

Dip Assembly Line Wave Solder Oven for SMT industry
Specification:
| Model No. | JAGUAR N300 |
| Number of Pre-heaters | 3 |
| Pre-heater Passage | 1450mm |
| Body Size | 2800(L)*1250(W)*1650(H) |
| Outside Dimension | 3600(L)*1250(W)*1650(H) |
| Weight | 1200KG |
| Total/Steady Sonsumption | 19KW/5-7KW |
| Air Supply | 0.5MPa |
| Preheat Style | Hot Air |
| Preheat Consumption | 220V 6KW |
| Control Method | Button+PLC(Optional: Touch Screen or PC) |
| Range of Temp. Set-point | Room Temperature---300ºC |
| Preheating Time | About 10-15mins for Setting 150ºC |
| Solder Application | Lead-free / Sn-Pb |
| Solder Pot Capacity | 280kgs |
| Solder Pot Temperature | 300ºC |
| Solder Pot Consumption | 380V 9KW |
| Solder Temp. Control Method | PID&SSR |
| Wave Motor Power | 250Wx2pcs 220V |
| Solder Melting | About 120mins for Setting 250ºC |
| PCB Width | 50-300mm |
| Conveyor Speed | 0-1800mm/min |
| Conveyor Direction | L→R (R→L optional) |
| Solder Angel | 4-7 º |
| Flux Pressure/Capacity | 3-5 Bar |
| Flux Capacity | 5.2L |
INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.
| Configuration list : |
| Control system | SIEMENS control system + PC |
| Conveyor motor | Taiwan Sanyue 90W gear box 1:100K |
| Solder Fingers | Jaguar special double v-groove thickness 1.5mm |
| Solder motor | Taiwan Sanyue three phase 6 pole 0.18kw high temperature resistant |
| Pneumatic cylinder | Germany FEST |
| Spray nozzle | Japanese lacquer ST-8 |
| Solenoid valve, regulating valve, connector, etc. | Taiwan Yadeke |
| Intermediate relay | Japan OMRON MY2 MY4 |
| Frequency inverter | Taiwan Delta |
| Heating element | Taiwan, imported nickel wire |
| Axial cross-flow blower | Global goods |
| Photoelectric switch | 24V NPN Swiss delight |
| Proximity switch | Korea Autonics |
| U type velocity measuring eye | OMRON |
| Solid-state relay | Switzerland Carlo |
| Air switch | chint |
| AC contactor | chint |
| Thermocouple | Insulation type K Taiwan reach |
| Button switch | Schneider |
